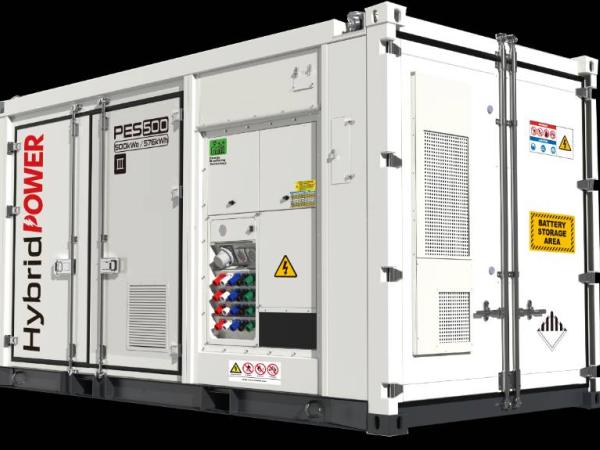

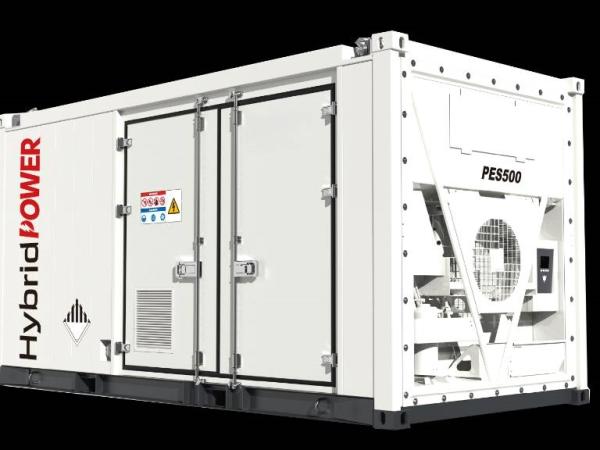

PES500 (2025) PES500 Hybrid Energy System - 500 kVA - 576 kWh
Referęncia №: DPX-20045
Informaçăo de vendedor
DPX POWER
Oudlandsedijk 8
4731 TB Oudenbosch
Netherlands
Contactar este vendedor nos meios sociais
Especificaçőes
| Categoria | Maquinaria |
|---|---|
| Ano de construçăo | 2025 |
| Marca | PES500 |
| CV | 680 HP |
| TARA em KG | 14240 |
| Pormenores | Hybrid Energy System - 500 kVA - 576 kWh |
| Preço | € 235000 |
Contact
Informaçăo objeto
- Bedieningspaneel
- Tank
Bijzonderheden
Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems
The PES500 is 500 kVA and 576 kWh.
- Continiuous chargeduration* (AC Charger): Unlimited
- Max. charge power: kW 5x16 - Automatic control according to changes in battery temperature.
- 3 Phase
- Noise level dBA@7m: 58
DC/AC System:
- Rated power: 500 kVA/ 500kW
- Output voltage: AC V 380/400/415
- Stanby AC charger power: kW 5x16
- Parallel / On Grid function
PV System:
- Rated power kWp: 110
- Input voltage: DC V 200-1000
Battery System:
- LiFePO4 / 576 kWh
- Rated voltage: DC V 768
- Cooling system: Air-cooled

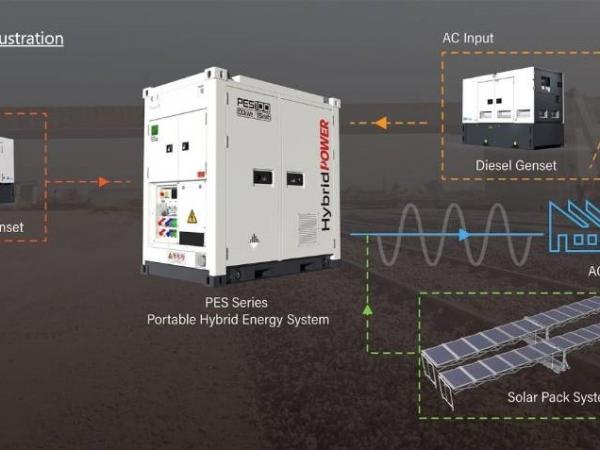

These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.
Wiring port: L1, L2, L3, N, PE
Power Input:
- AC socket: 3P/5W, 1x500kW, 5x16kW
- AC copper: 3P/4W, 500kW
- DC socket: 110kW
Power Output:
- AC socket: 3P/5W, 1x500kW
- AC socket: 1P, 1x16A; 3P, 1x32A
- AC copper: 3P/4W, 500kW
Meer informatie
Nieuw: Ja
Toepassingsgebied: Bouw
Merk motor: Battery System: LIFePO4
Generatorvermogen: 500 kVA
CE markering: ja
BTW: De getoonde prijs is exclusief BTW
Afmetingen (LxBxH) (m): 4,65x2,3x2,5
